USB(3A)+2way socket

Model ID：V-5710

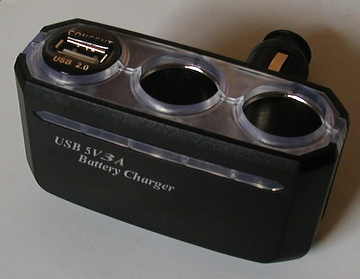

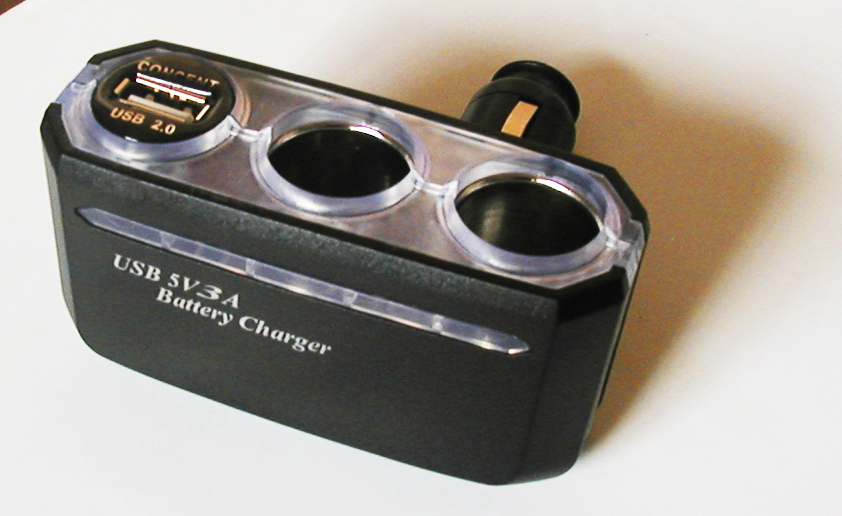

USB Battery Charger + 2 Receptacles for Auto Powder Cord

A. Features

1. USB Battery Charger + 2 Receptacles, two functions in one to save cost and space;

2. In-car battery charger for flash disk, MP3, cell phone, iPOD and PDA etc.;

3. Easy to use without having to carrying a heavy transformer;

4. Single general model of USB 2.0 version (as shown in Figure);

5. Equipped with LED indicator and mood light;

6. Vertical and 360˚ horizontal rotation design for easy plug and light angle adjustment;

PREV NEXT

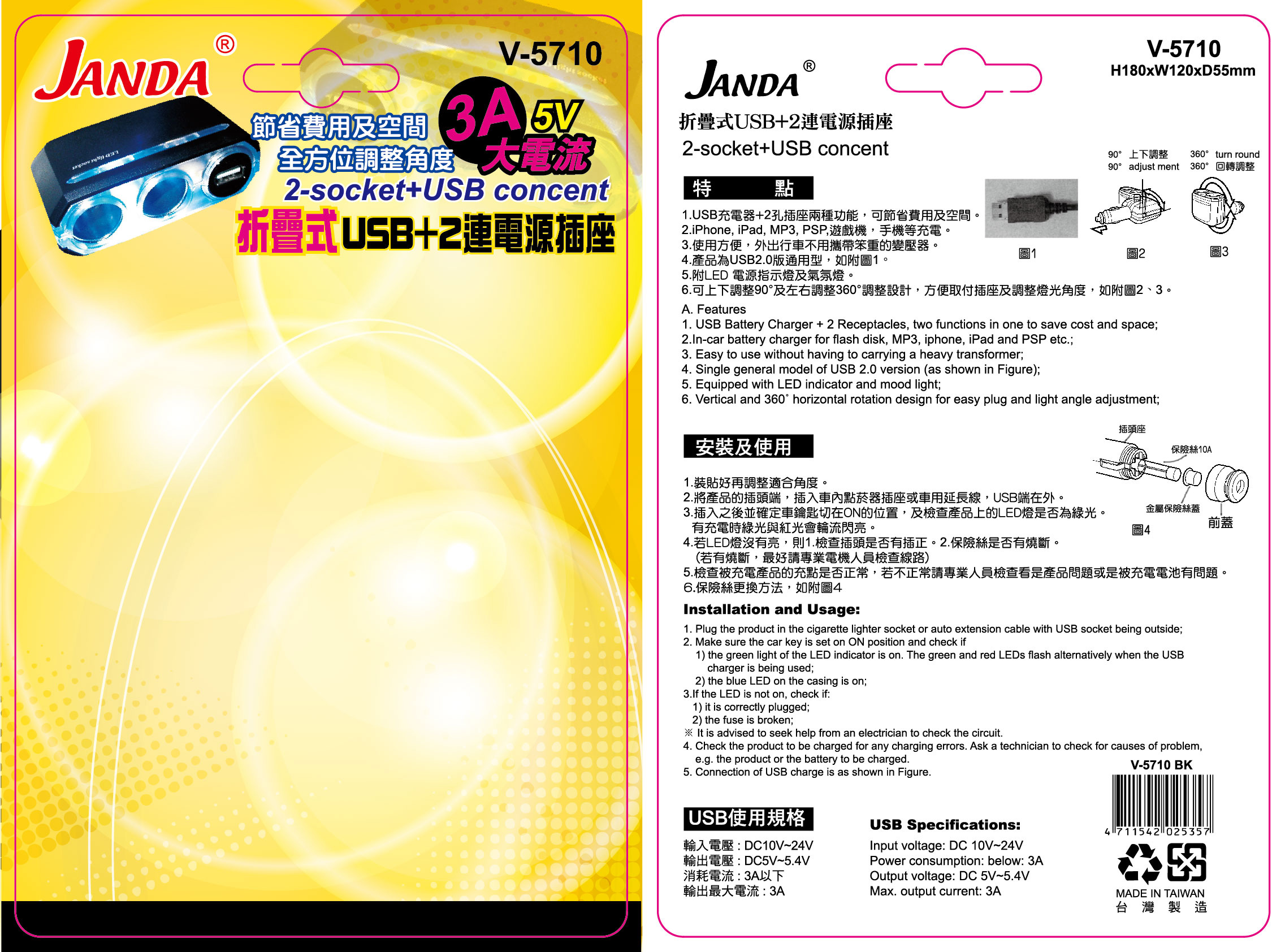

Installation and use:

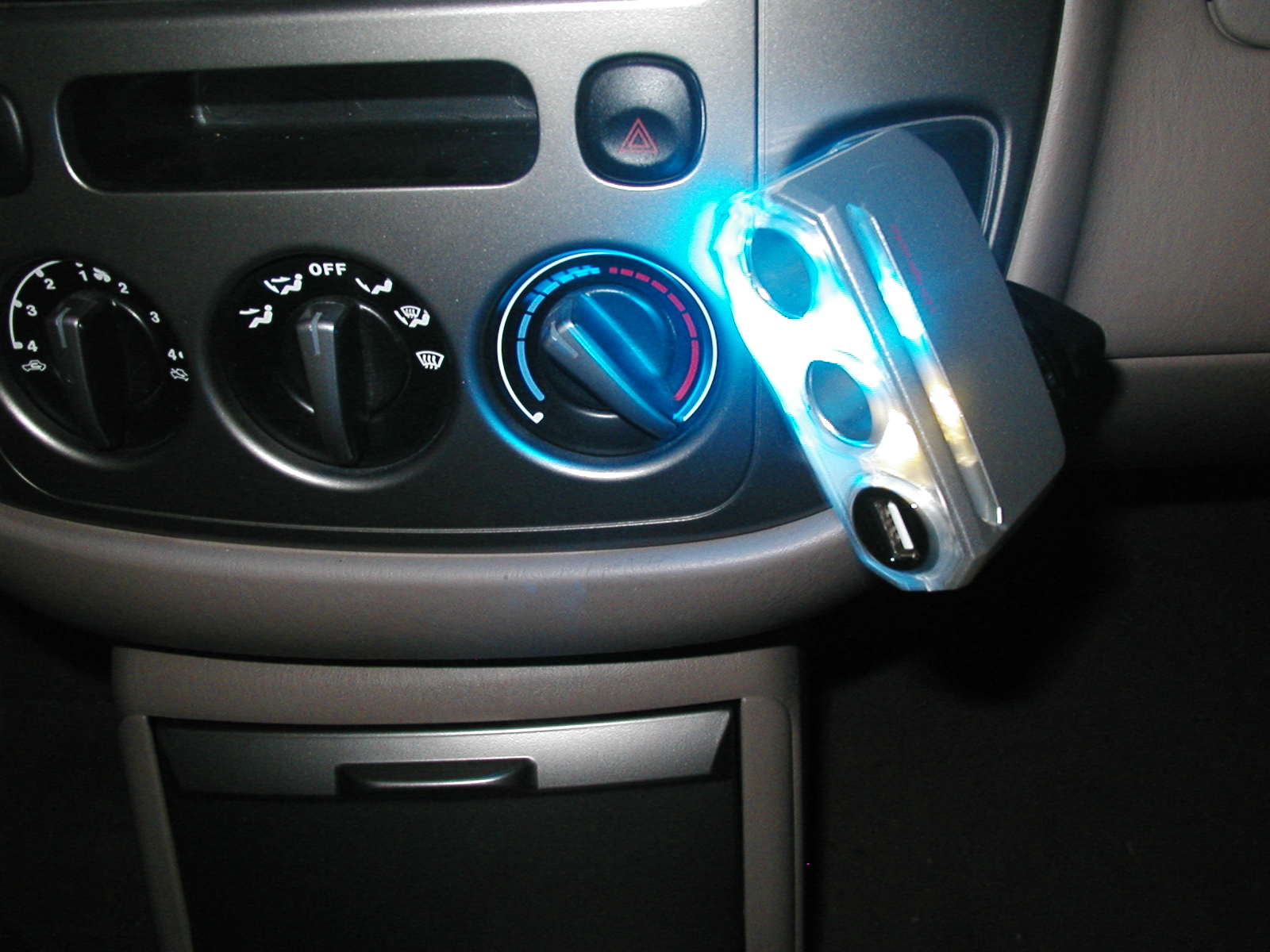

1. Insert the product into the cigarette lighter socket, with the USB socket outside;

2. Make sure the car key is set to the ON position and check if
1) The LED indicator light is green. When using the USB charger, the green and red LED lights flash alternately;
2) The blue LED light on the casing is on;

3. If the LED does not light up, check whether:
1) Whether the plug is inserted correctly;
2) The fuse is blown;
※ It is recommended to seek help from an electrician to check the circuit.

4. Check whether the product to be charged has any charging errors. Have a technician check the cause of the problem, such as the product or battery being charged.
5. The USB charging connection is as shown in the figure.

USB Specifications:

Input voltage: DC 10V~24V

Power consumption: below: 3A

Output voltage: DC 5V~5.4V

Max. output current: 3A
