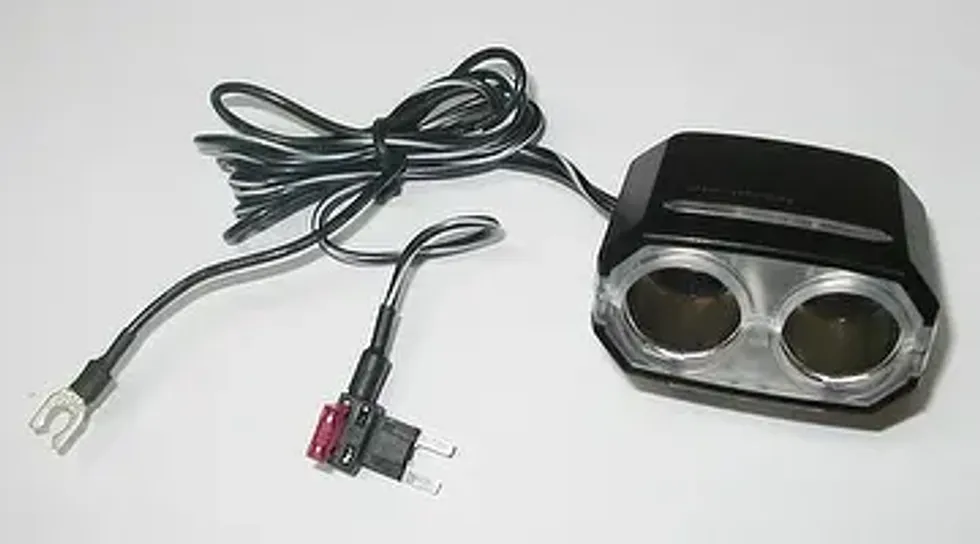

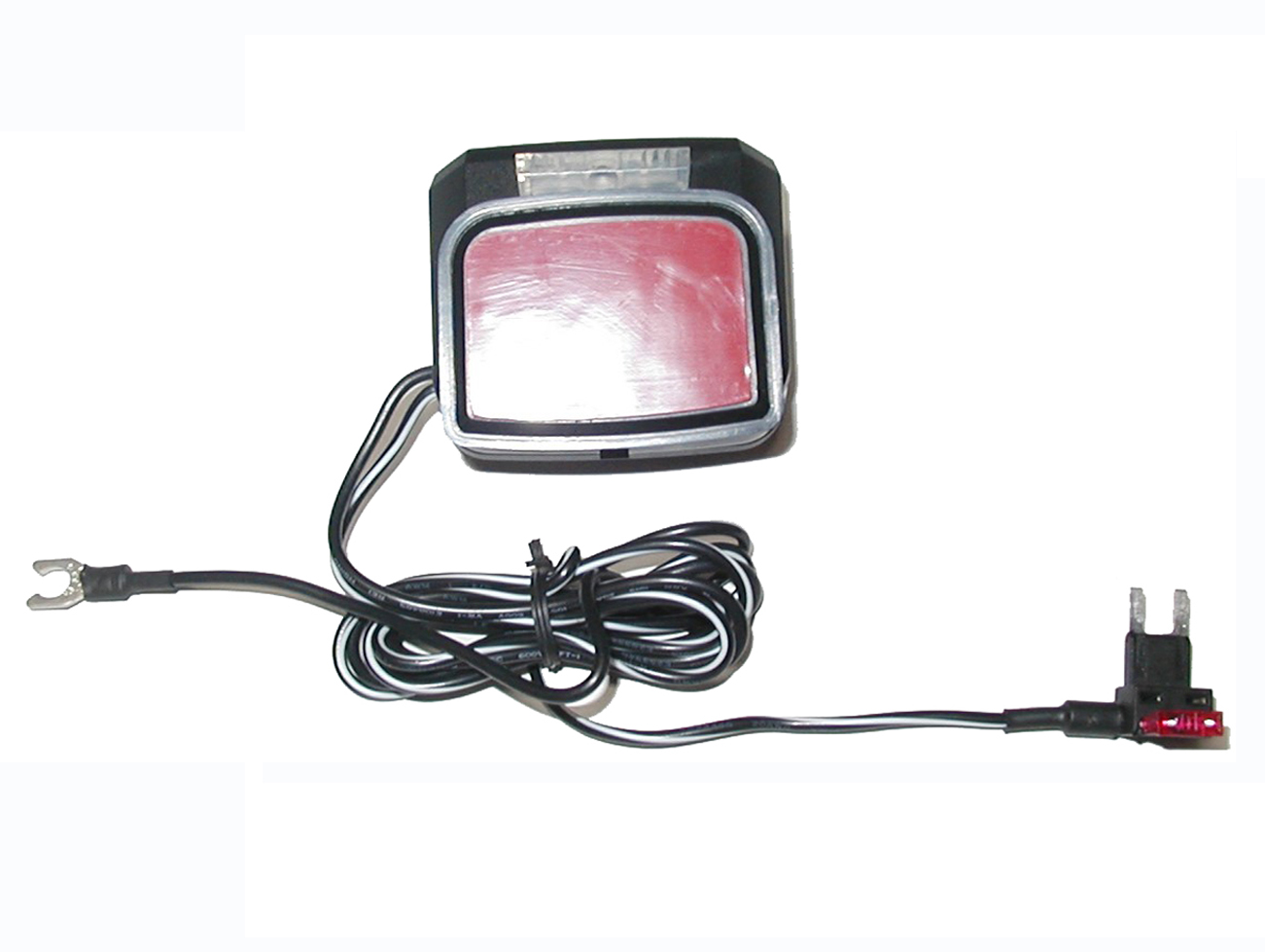

Socket Extension Block to Fuse Box 2-Port

Socket Extension Block to Fuse Box 2-Port

Model ID：V-5615

1. Features

1) Directly connect to the fuse box. It is not necessary to plug into in-car electric socket.

2) The product is with a fuse holder. The removed fuse can be plugged into the new fuse holder. It will not influence the function of original fuse.

3) The cord is up to 1 meter long for the convenience of backseat passengers. It is also with an LED to improve in-car lighting.

PREV NEXT

2. Installation

1) Connect terminal “C” to metal body of the car for negative pole of power source.

2) Open the fuse box of the car. Check for fuses of 10A or above. Choose one that is not used often. If you choose a fuse that is used frequently, it may influence the electric supply of the car.

3) Remove the fuse that you choose and insert the fuse of the product. Insert the removed fuse into the fuse holder of the product.

4) After completing the above procedures, check if the LED lights on. If not, check for broken fuse and if the key is in the “ON” position. Otherwise, ask for professional help.

3.Notice：

1. This products are used for 12V car, confirm the automobile-used power first before buying.

2. The total power of electric apparatus uses does not to exceed 10A（120W）.

3. There are not automatic cigarette device functions. Such as figures 4.
