Taiwan Concealed PSU sockets 3 kinds of insurance division installation socket

Taiwan Concealed PSU sockets 3 kinds of insurance division installation socket

Model ID：V-5633

V-5633 3 types of single-hole sockets that can be installed by insurance companies

Features

1) Directly connect to the fuse box. It is not necessary to plug into in-car electric socket.

2) The cord is up to 1 meter long for the convenience of backseat passengers.

To power the tachograph, satellite navigation, tachometer and other auto electrical appliances and gadgets.

PREV NEXT

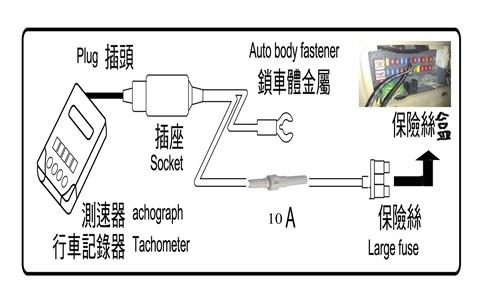

2. Installation

1) Connect terminal “C” to metal body of the car for negative pole of power source.

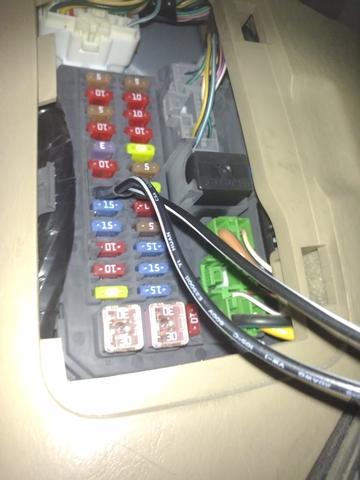

2) Open the fuse box of the car. Check for fuses of 10A or above. Choose one that is not used often. If you choose a fuse that is used frequently, it may influence the electric supply of the car.

3) Remove the fuse that you choose and insert the fuse of the product.

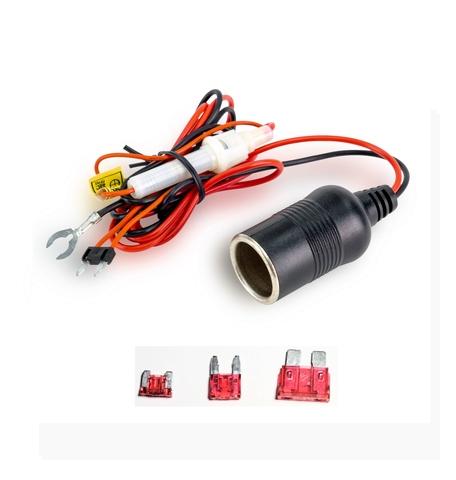

Socket Extension Block to Fuse Box (Model: V5633)

Features

Direct Fuse Box Connection – This device connects directly to the vehicle’s fuse box, eliminating the need to use the standard in-car cigarette lighter socket.
Extended Power Cord – The 1-meter cable allows convenient power access for backseat passengers.
Multi-Device Power Supply – Ideal for powering tachographs, GPS navigation systems, tachometers, and other automotive electrical accessories and gadgets.

Output: DC 12V–24V / 5A
Fuse Rating: 12V–24V / 10A
